FOR HIGH PRODUCTION AGGREGATE & SOIL PROCESSING

Simple. Serviceable. Durable.

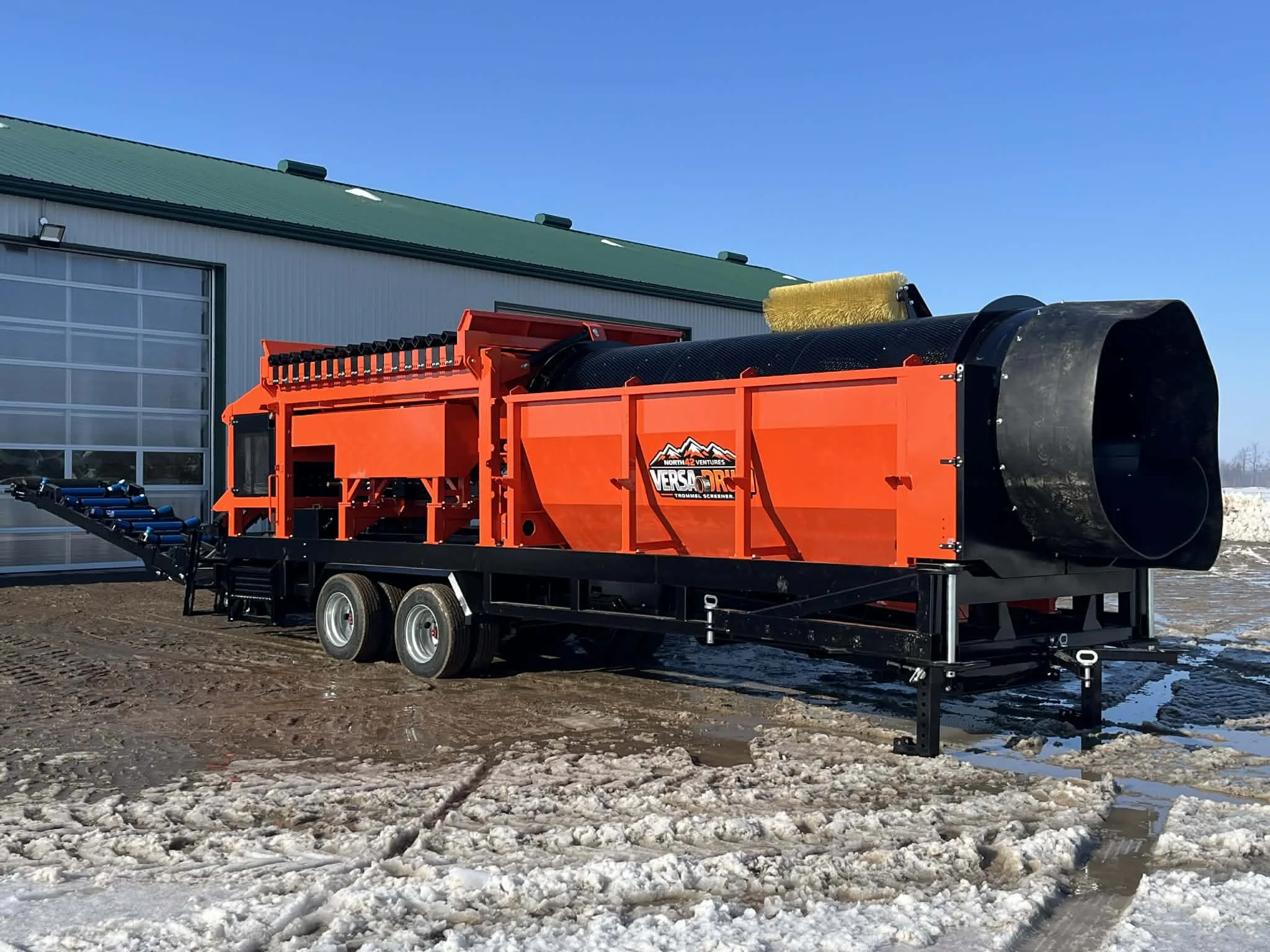

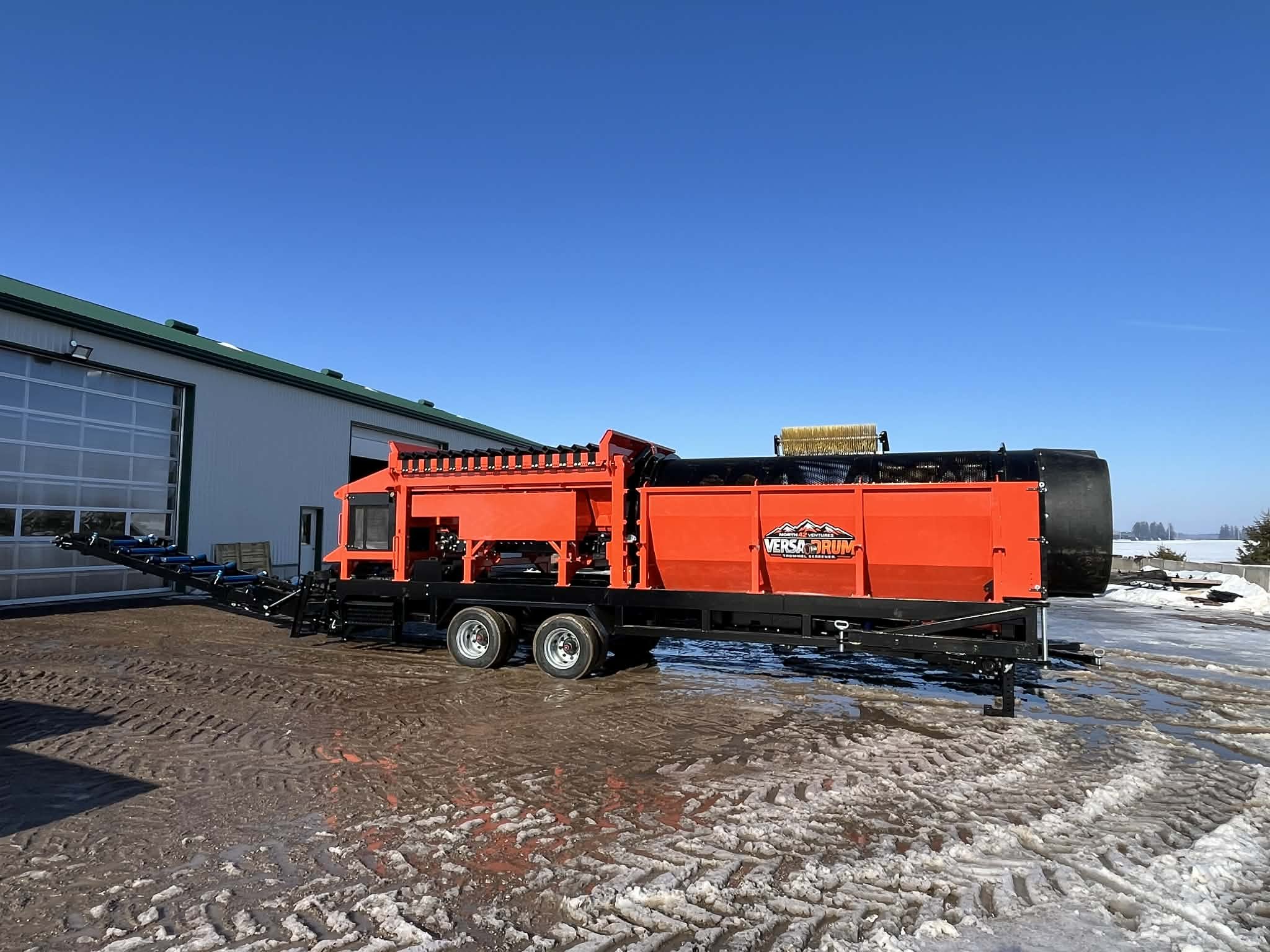

NEW from North 42: The Versa-Drum Trommel

The Versa-Drum Trommel is designed for aggregate producers, and soil processors who want high production

ENGINE

  • 73.2 HP Kubota liquid cooled diesel

  • Meets California emission standards without DEF requirements.

  • 100 gal. fuel tank

HYDRAULICS

  • 142 gal

  • 62.9 gpm 2500 psi pump

  • Oil cooler

SCREEN DRUM

  • 0-24 rpm

  • 132 tooth driven sprocket x 21 tooth driving sprocket (RS120-1 Roller chain)

EASY TRANSPORTATION

  • Pintle ring

  • Folding hitch & conveyor

  • Towing lights

  • Hydraulic stabilizers

  • Locking legs

  • 15K tandem axles

  • ST235/75R17.5 radial dual wheels

  • Electric brakes

FEED HOPPER

  • 115” x 76” load opening

  • 32” bottom opening width

  • 104” top of hopper load height

  • 5.5 cu yd capacity

  • made with hardened AR steel plate for impact resistance

GRIZZLY BARS

  • Adjustable spacing

  • 109” height

  • 120” x 89” load opening

  • 115” top of wing boards

DRUM

  • 5’ x 15’ drum

  • 186 sq ft screen area

  • Helical screw material agitation

  • 0-24 rpm chain driven

DRUM SUPPORT WHEELS

  • 8” x 4” Urethane cap on steel wheel w/bearings

DRUM CLEANING BRUSH

  • 14” diameter

  • Polyethylene bristle

  • 1.25" w/sealed bearings

INFEED CONVEYOR

  • CEMA "D" impact rollers w/ sealed bearings

  • 0-35 fpm belt speed

OUTFEED CONVEYOR

  • 330” long (pulley centers)

  • 20° CEMA "B" rollers w/sealed bearings

  • Variable speed - 500 fpm (max)

STACKING CONVEYOR

  • 252” long (pulley centers)

  • 20° CEMA "B" rollers w/sealed bearings

  • Variable speed - 500 fpm (max)

Logo for North 42 Ventures Versa Drum Trommel Screen, featuring mountain graphic, text in black, white, gray, and orange, with a drum graphic in the center.

OPTIONAL:

  • Disc return rollers (Help to clean the belt)

  • Work Lights
