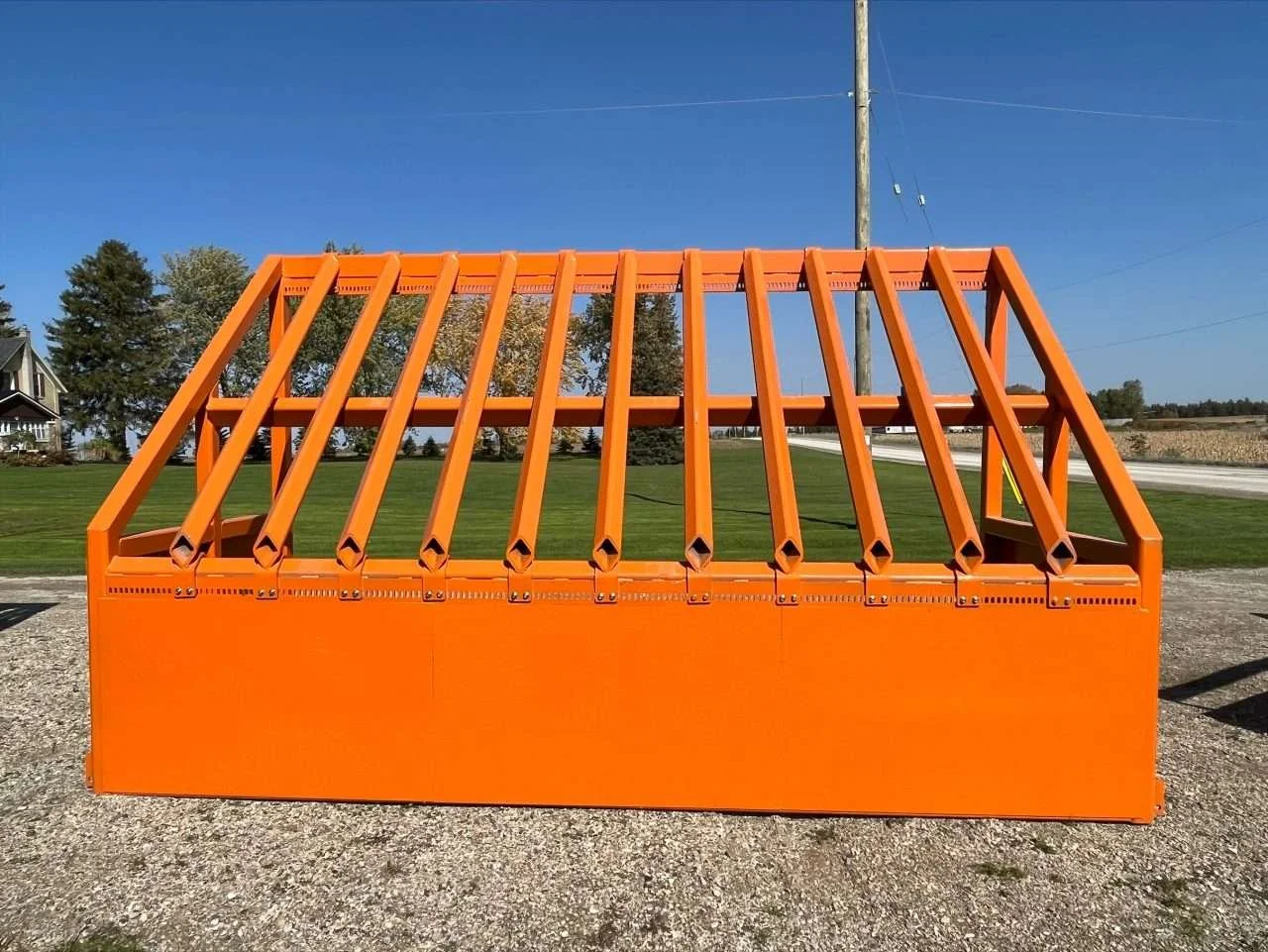

GRIZZLY BARS
Designed to Take a Beating.
North 42 Ventures offers 8’, 10′, 14′, 15′ and 17’ Grizzly Bars.
Bars:
3″ tubing, 3/16″ wall thickness (8’ & 10′)
4” tubing, 1/4″ wall thickness (14′, 15′ & 17’)
EXTREME DUTY 1/2″ wall (14′, 15′ & 17’)
Weight:
8 foot - 2600 lbs
10 foot – 3000 Ibs
14 foot – 5500 Ibs
15 foot – 6000 Ibs
17 foot - 7600 lbs
Screen Angle: 42°
Freight Dimensions: 10 foot – 7′ high x 5′ long x 10′ wide, 14 foot, 15 foot & 17’ foot – hauling requirement is a step deck (legal transport)
Rock Break Down: 2″ minus – 10″ minus, Factory set at 2″ minus adjustable in 1″ increments (8’ & 10’), Factory set at 2.5″ minus adjustable in 1″ increments (14’, 15’ & 17’)
Bolts: 1/2″ carriage bolts with 1″ spacing
Finish: Sherwin Williams primer and finish
Big job? Grizzly Bars can be transported inside of each other!
