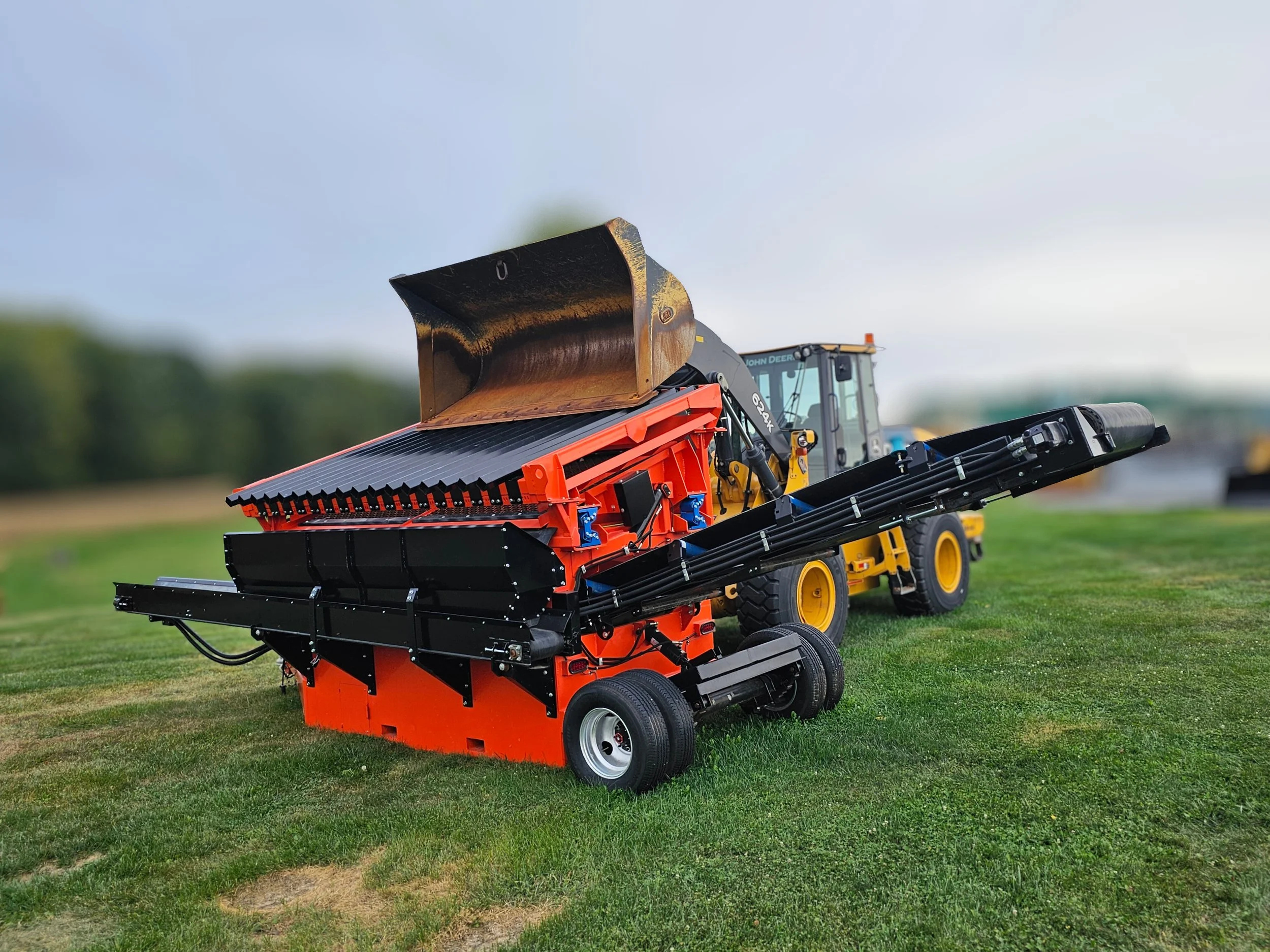

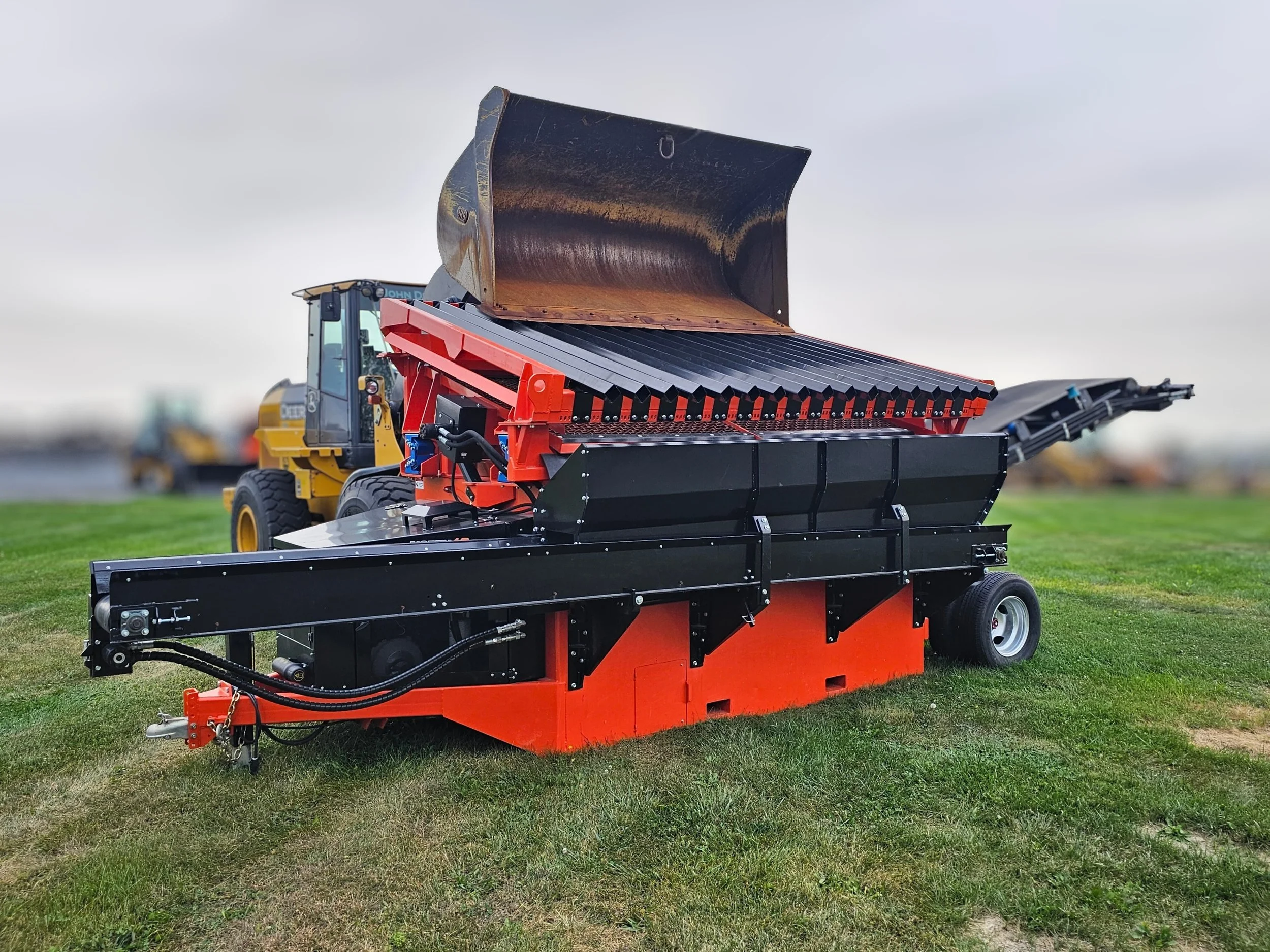

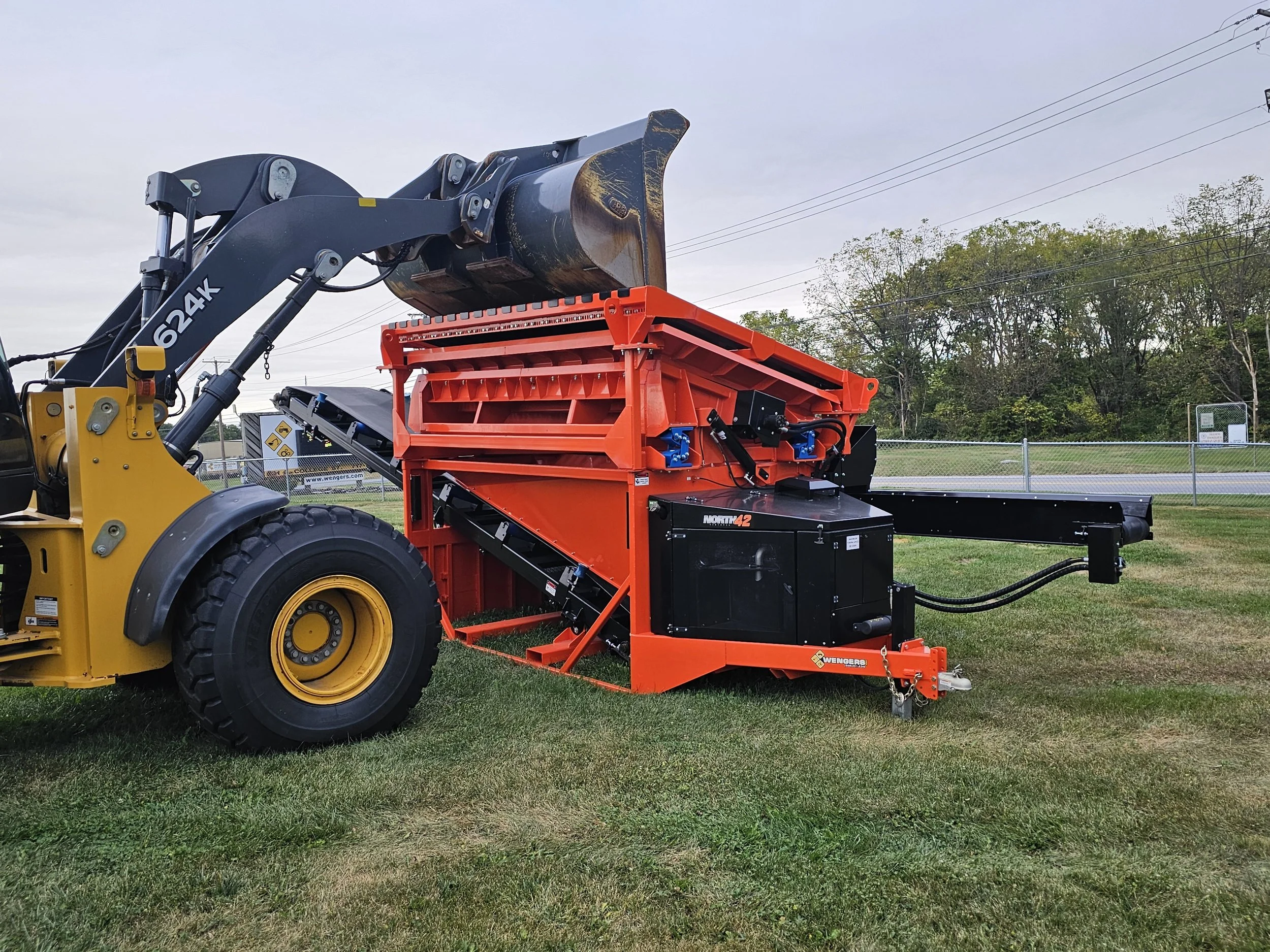

Same Great Features as the Hustler, Upgraded for More Convenience and Capacity.

• Capacity: 100 yards her hour

• Weight: 13,200 lbs

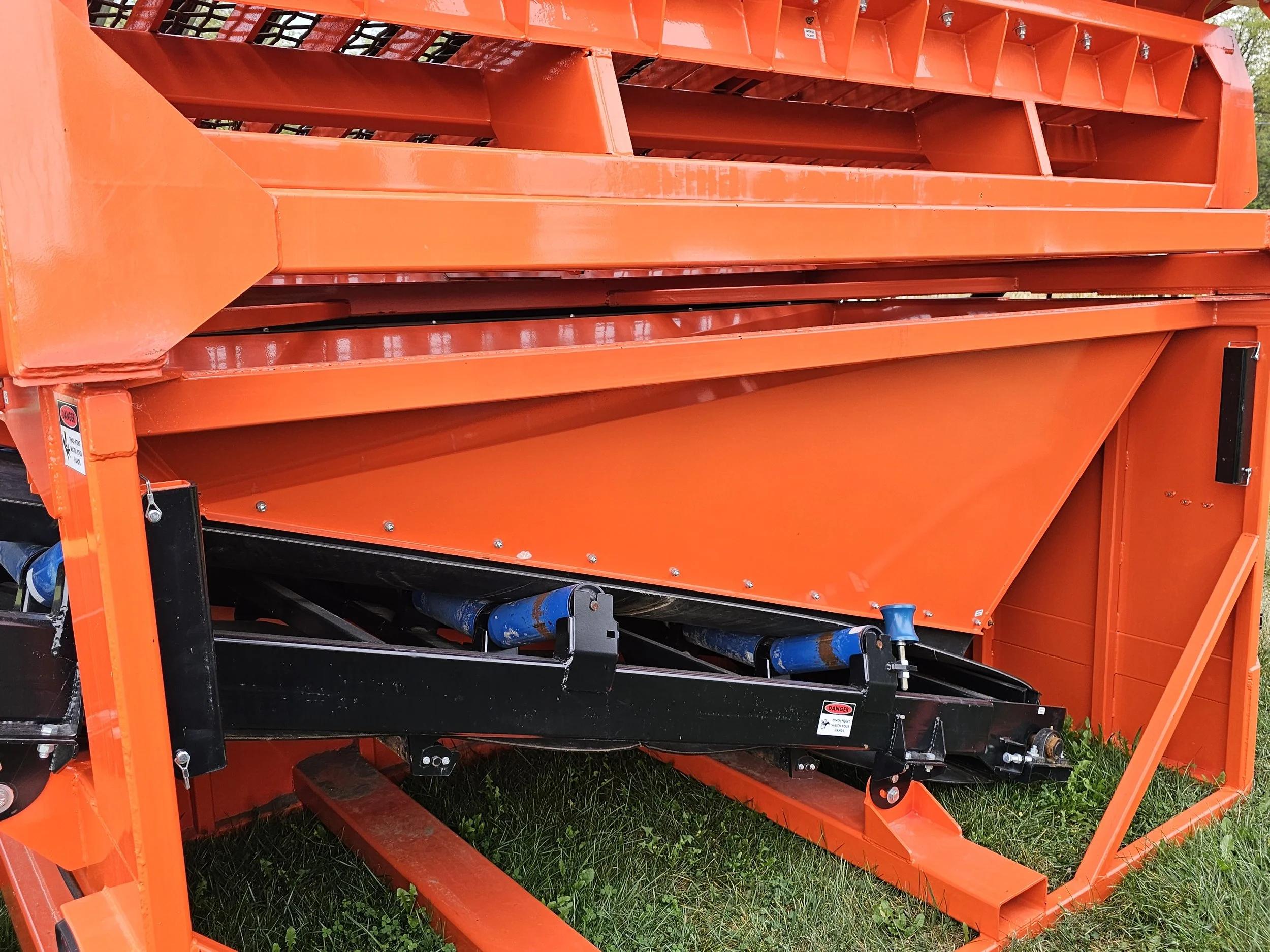

• Screen Angle: Adjustable hydraulic tilting deck
  15° lowered - 46° raised

• Overall Dimensions: 7’ 7”′ wide x  27’6″ long, 8’11″ high

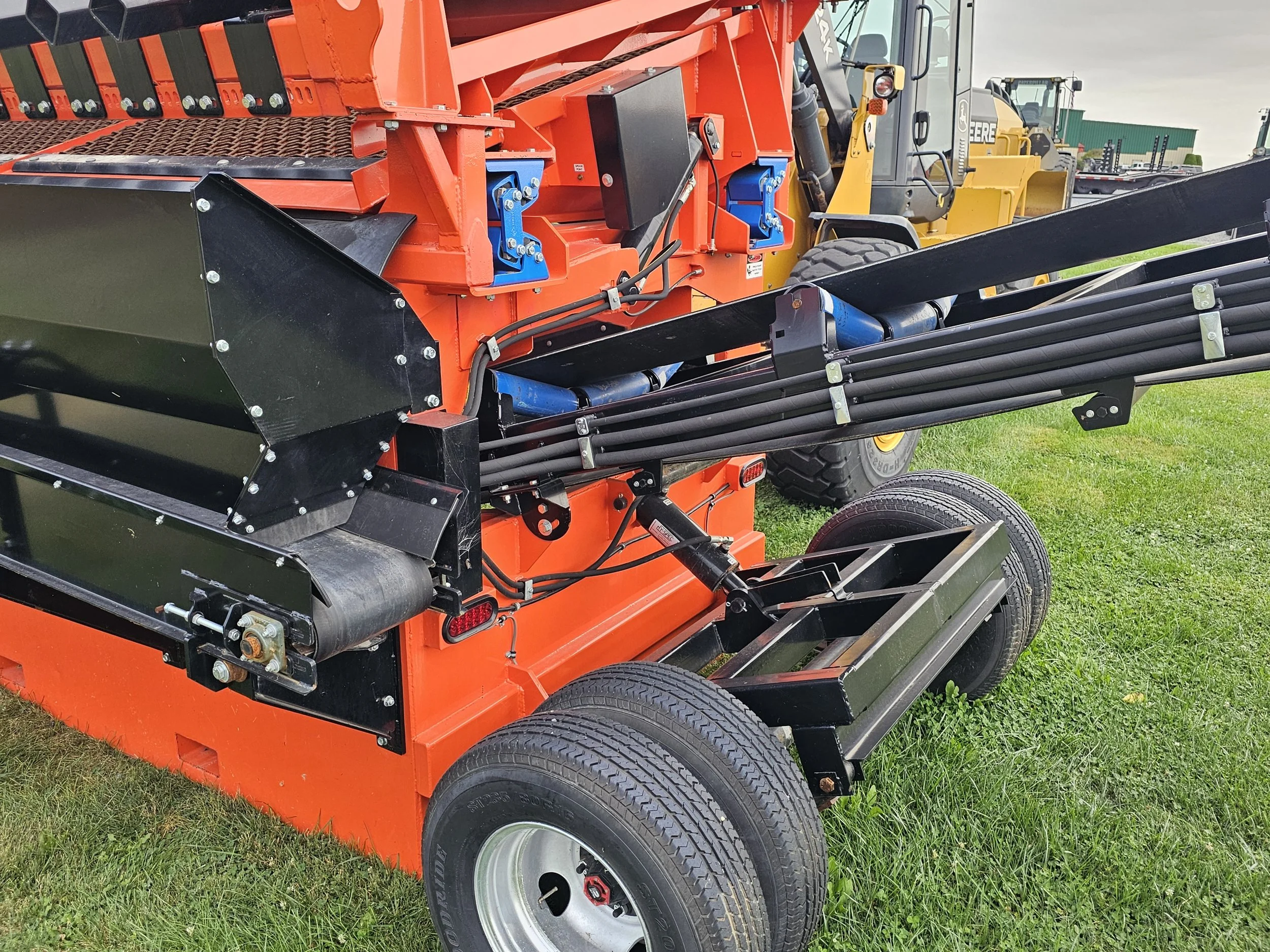

• Quick-attach removable side conveyor

• Conveyors Dimensions: 36” wide x 11’ 2” long belt (8’2” discharge height), 36” x 18’ long belt

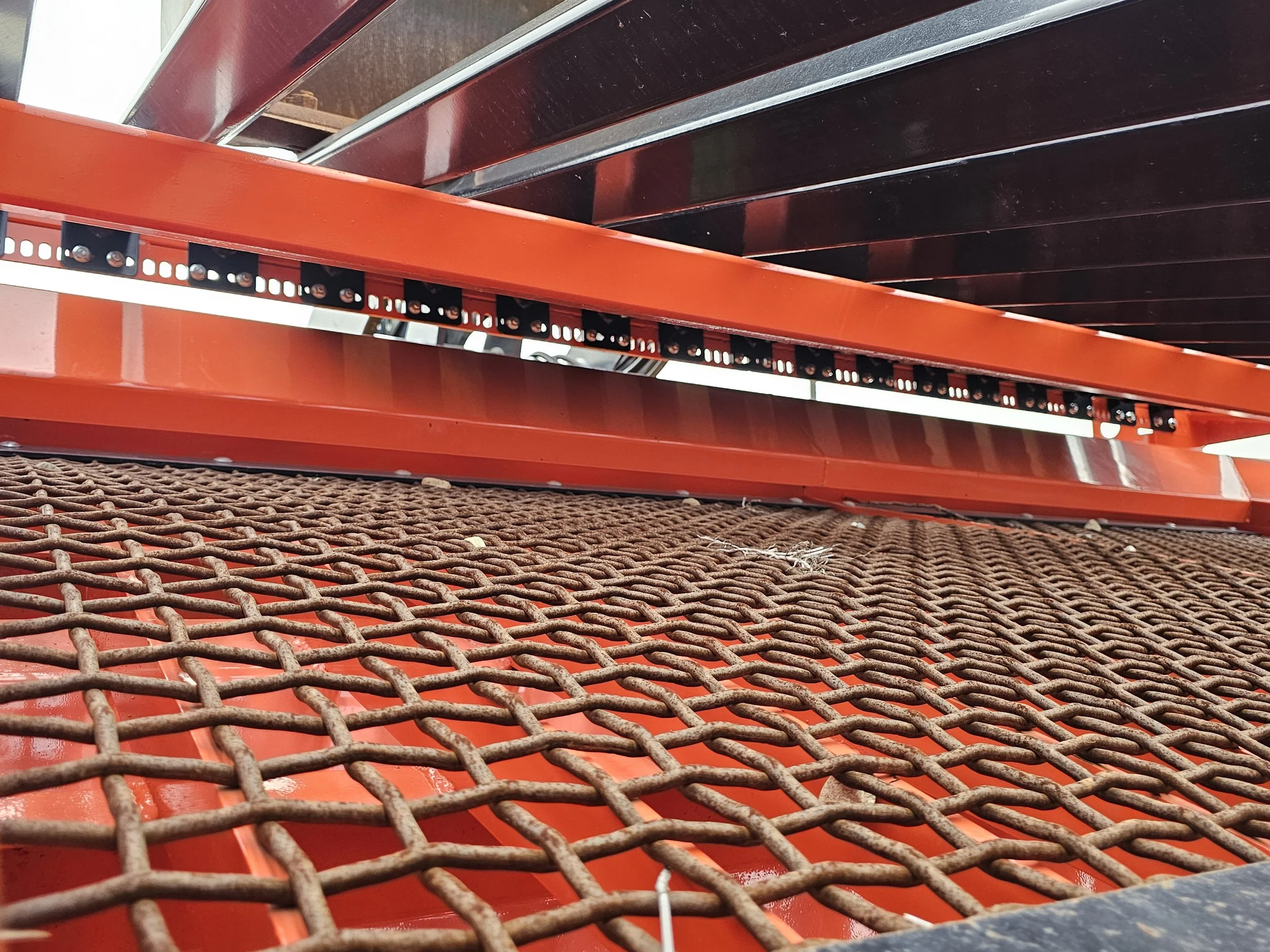

• Screen Specifications: 1.5″ x 1.5″ square hole wire woven rock screen with 5′ wide x 10′ wing boards

• Screen Dimensions: 5′ wide x 10′ long with 1′ wing boards

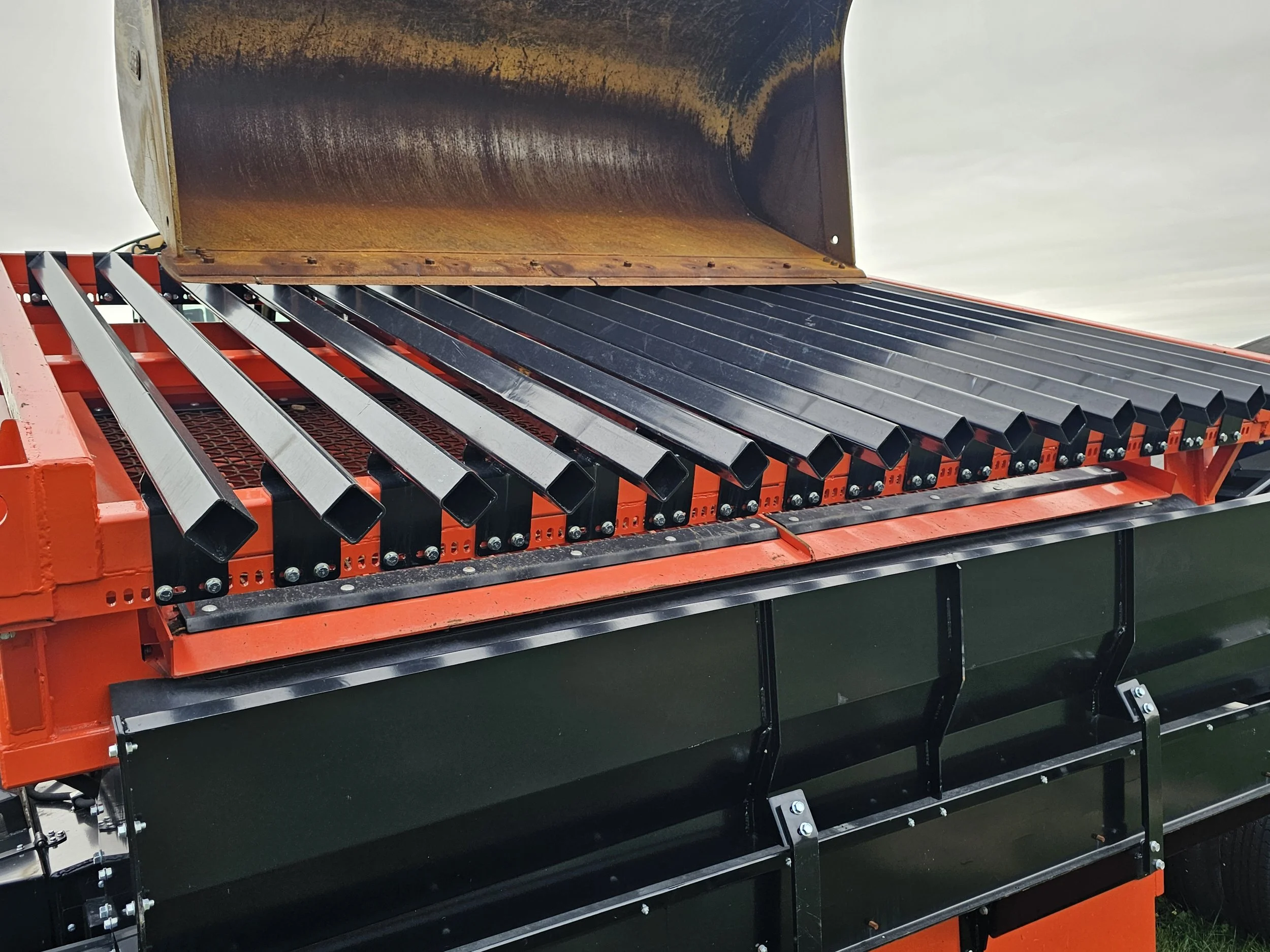

• Removable Grizzly Bars: 3” square tubing, 3/16” wall thickness, 3” spacing

• Bolts: 5/16″ J-Bolts with nylon locking units

• Finish: Powder Coated

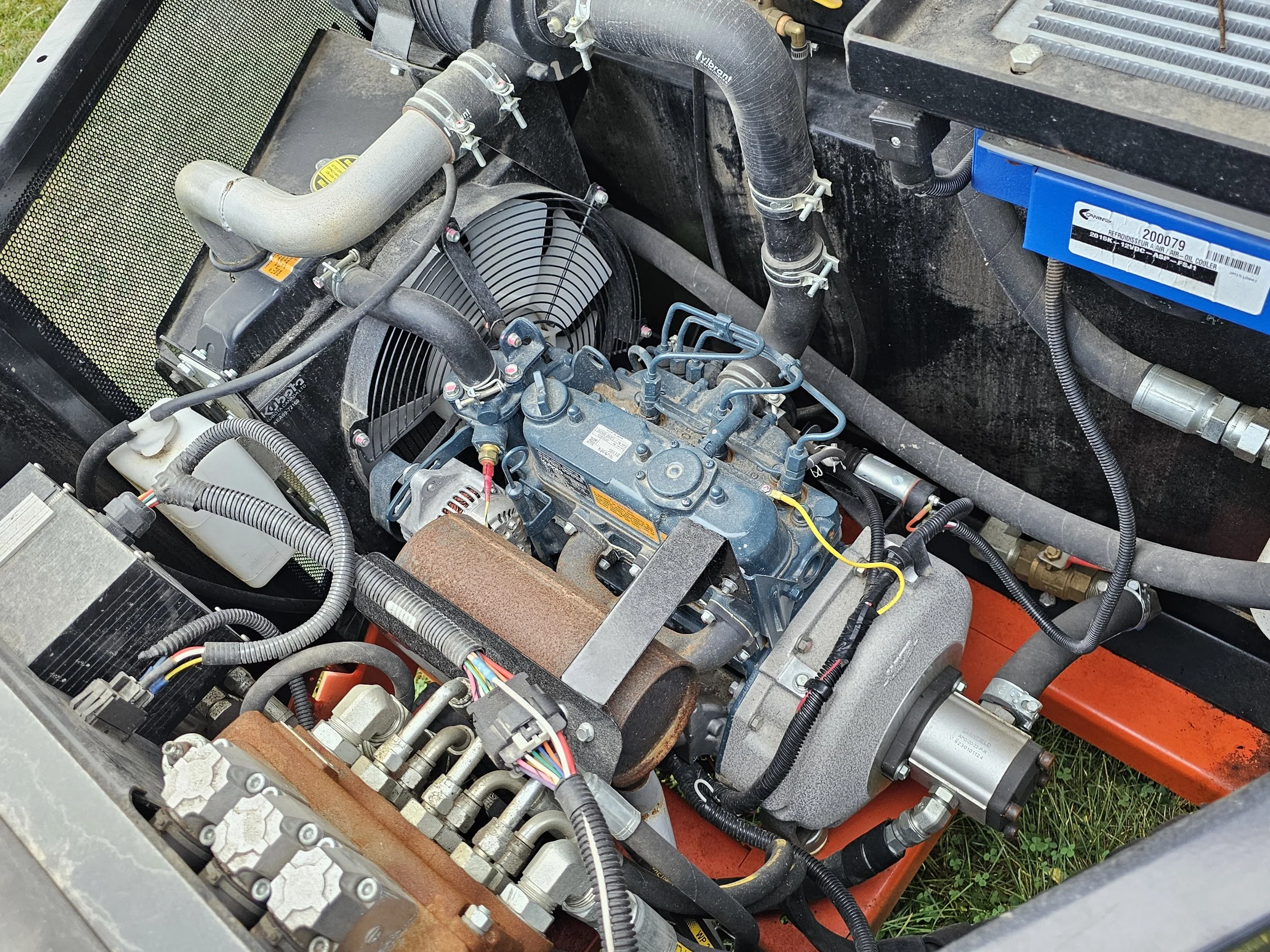

• Engine: Kubota Diesel 24.8hp liquid cooled engine

• Towing package: Torsion mounted axle with electric brakes and lights

• Tires: 235/80R16 8 bolt rim

• Hitch Size: 2 5/6″ ball hitch

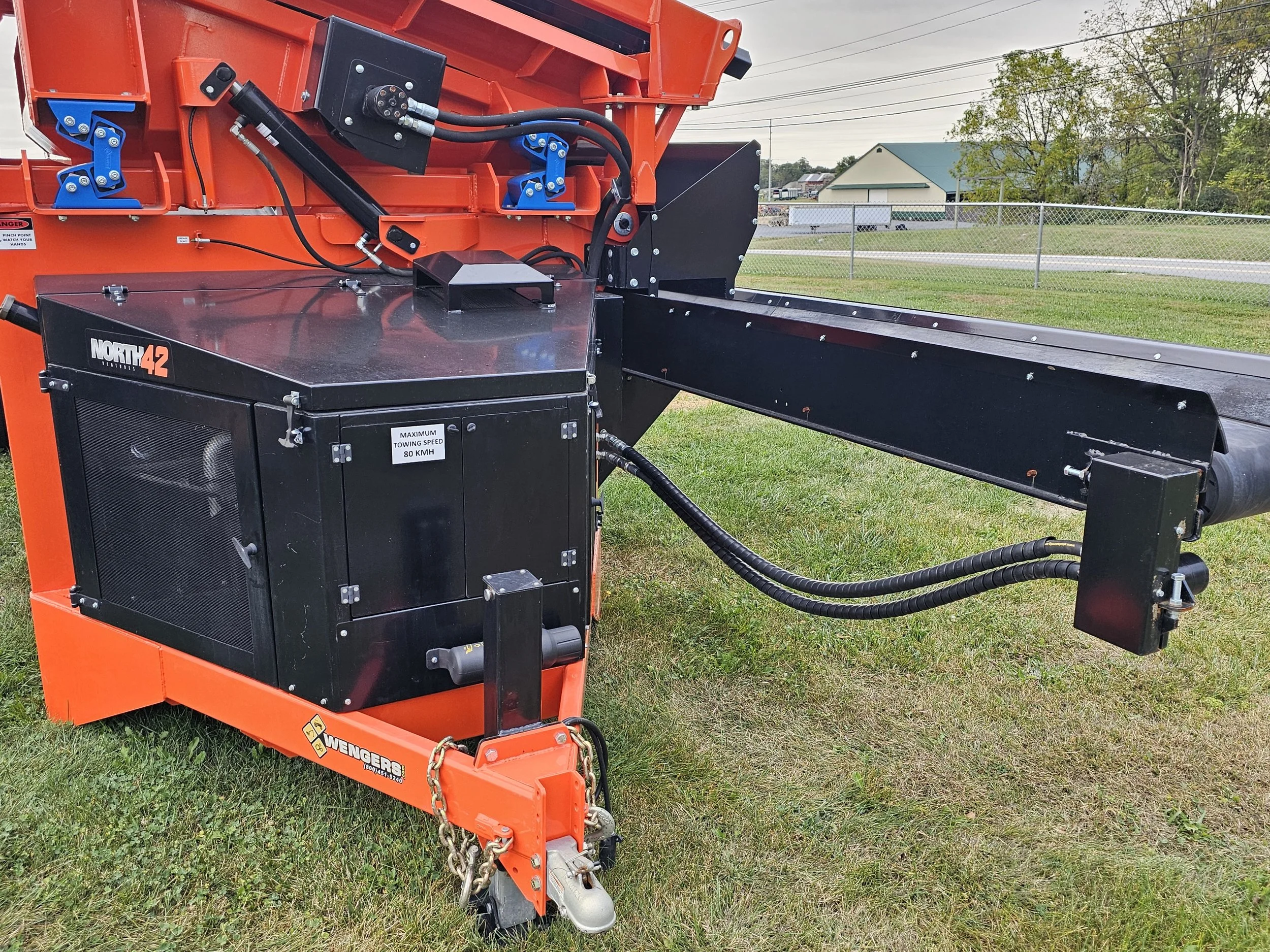

• Hydraulic Power Pack: Vibrating deck motor, hydraulic tilting deck, hydraulic rear axle provide better stability, rear axle drops lower to ground for easy setup

• Equipped with Glo plugs for easy cold starts
