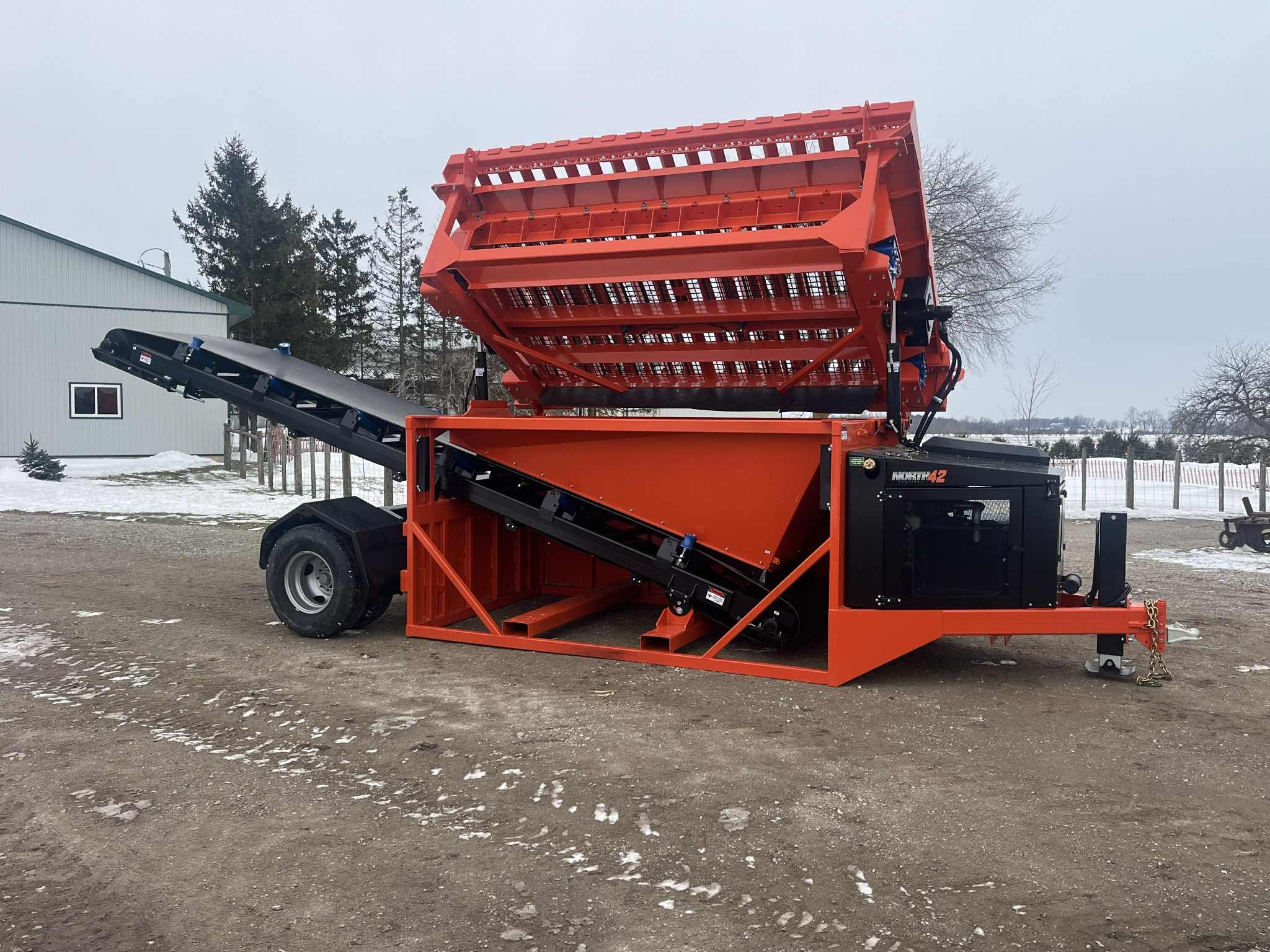

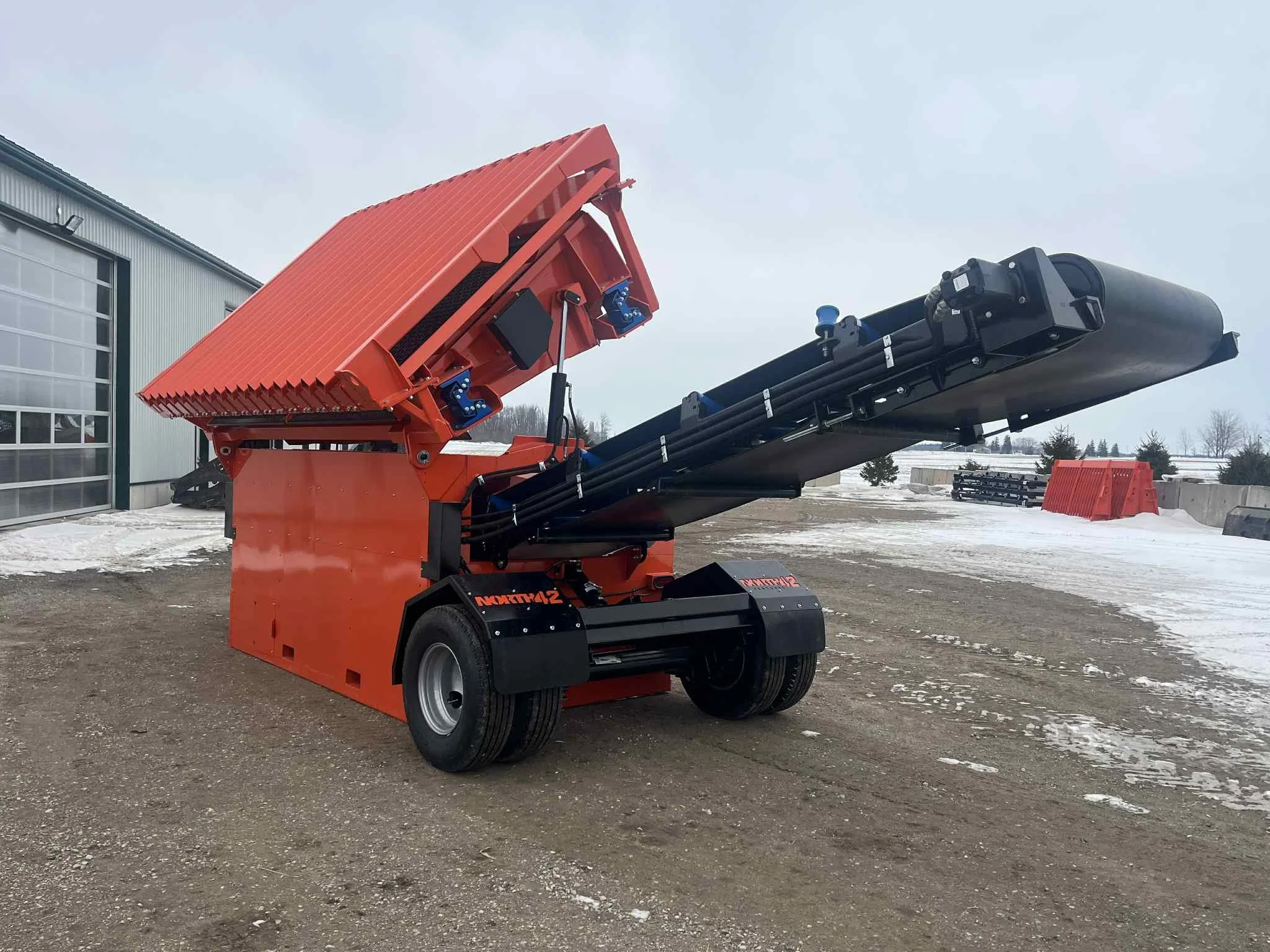

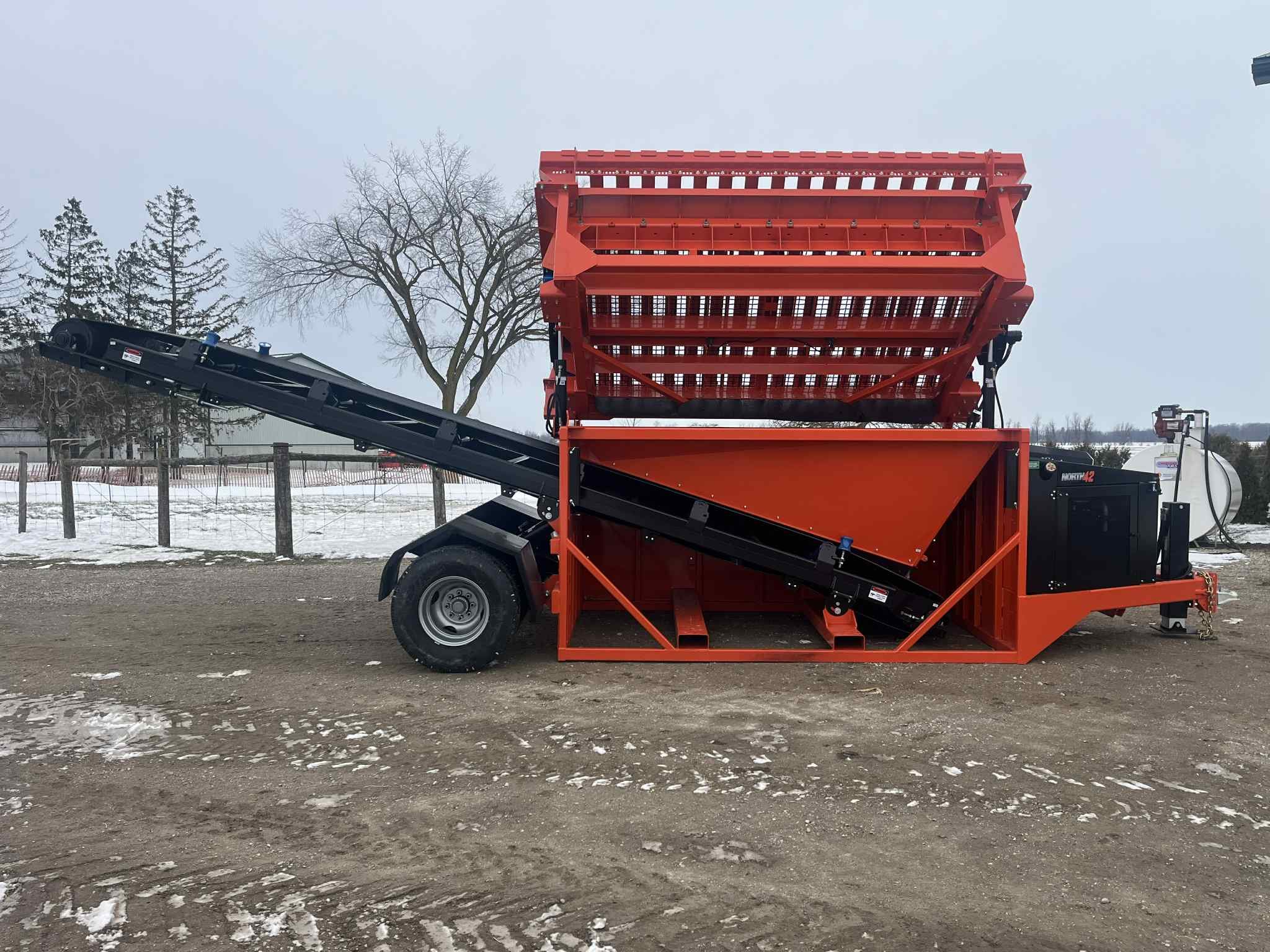

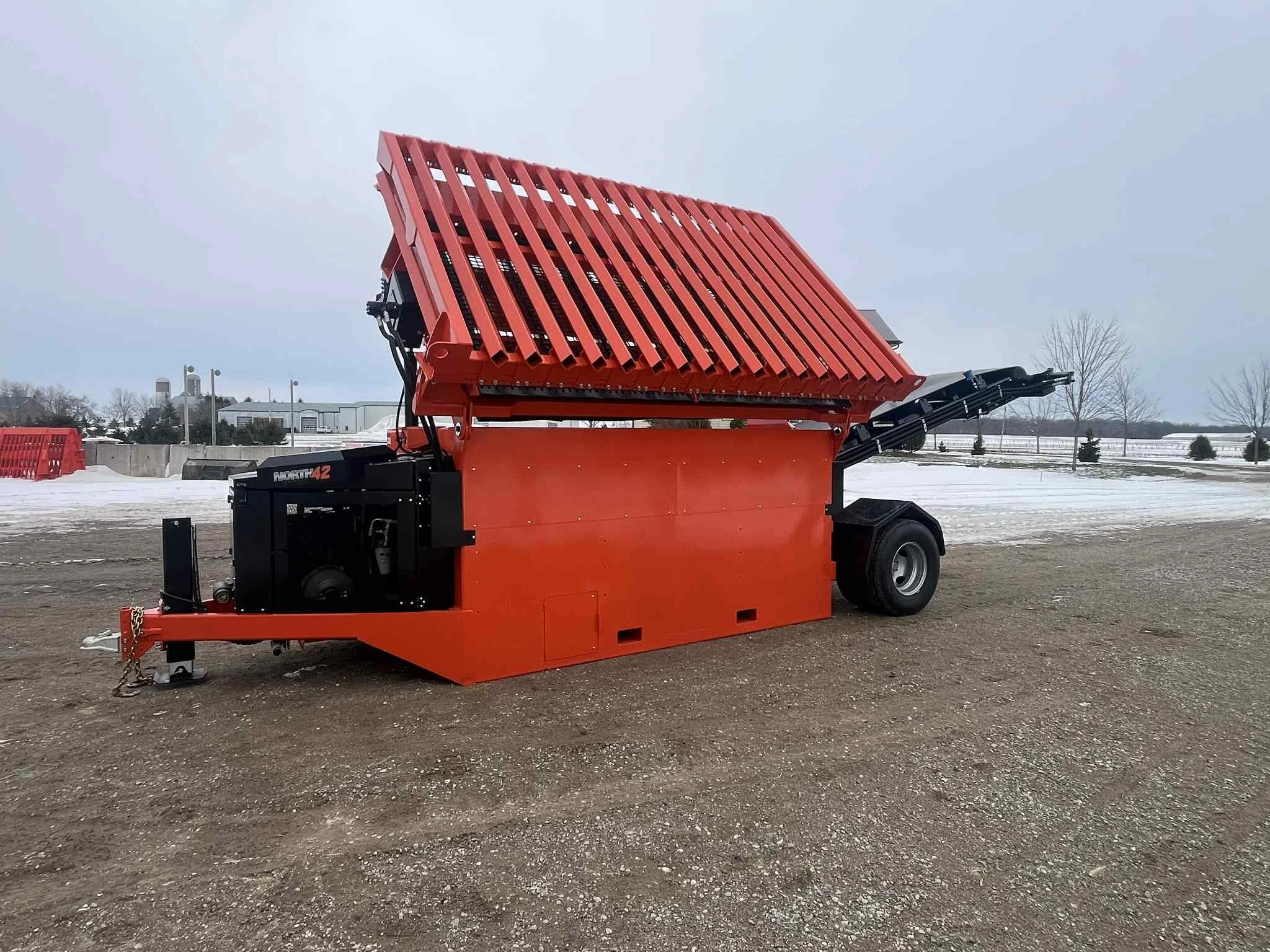

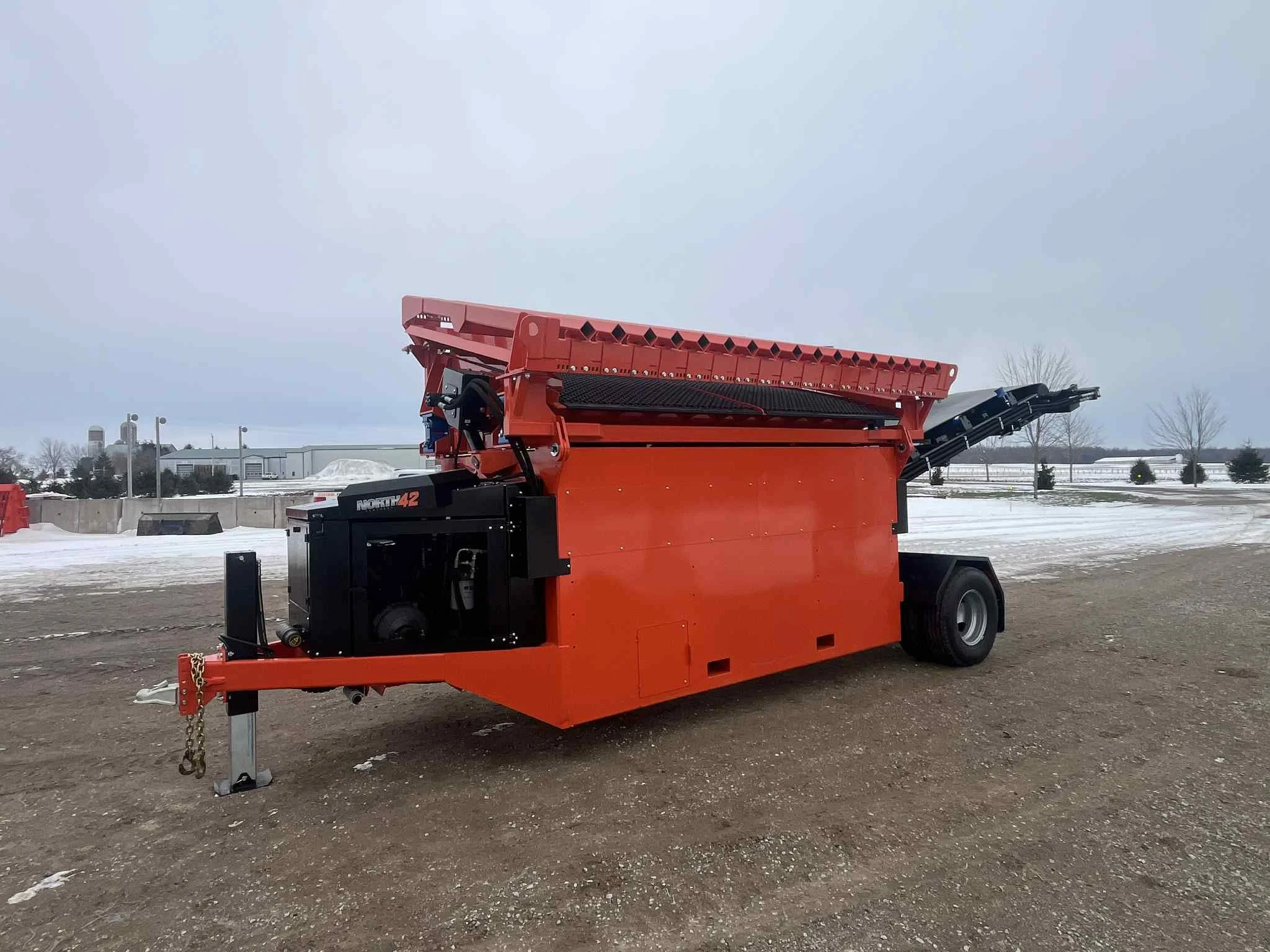

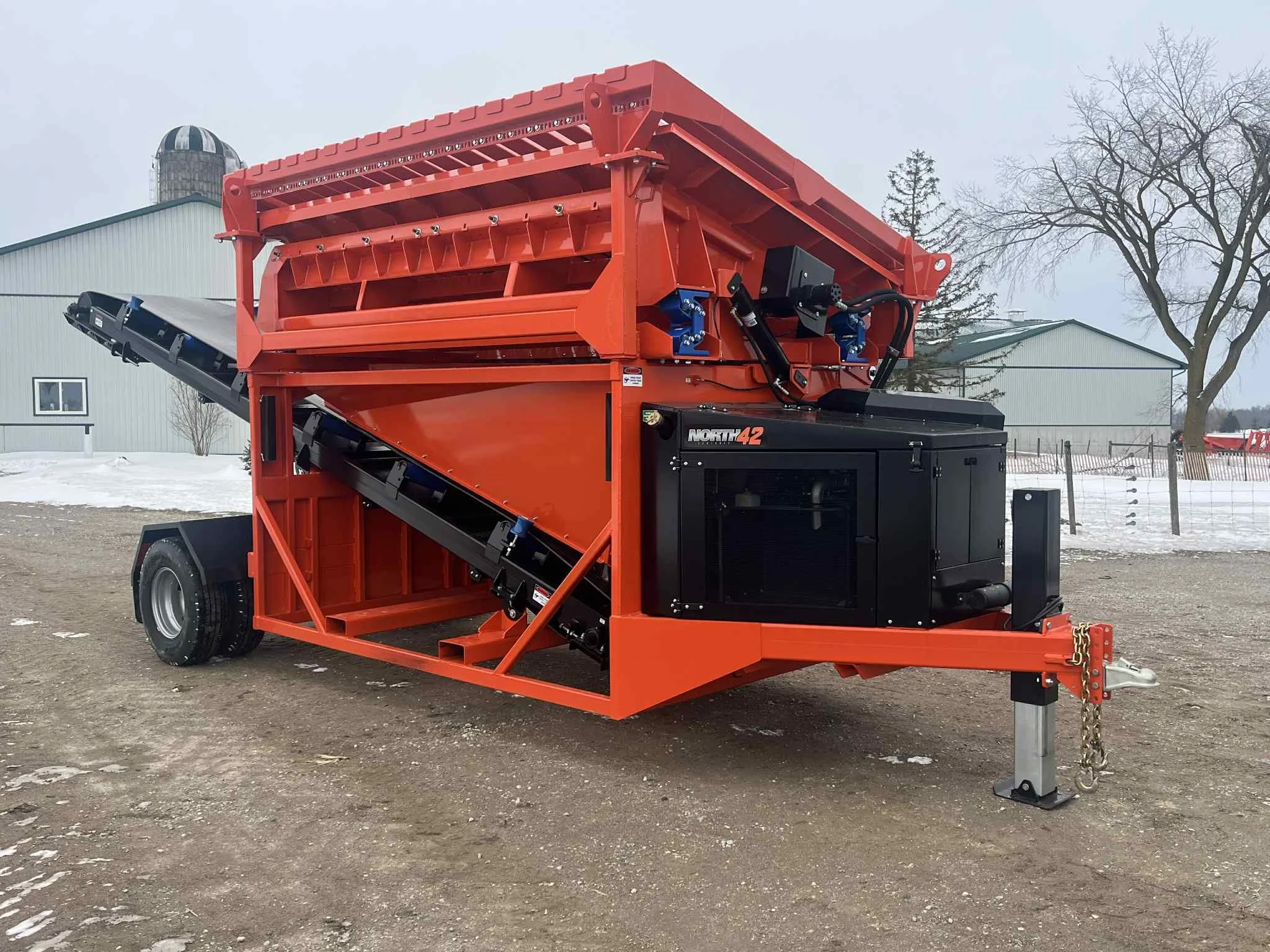

North 42 Ventures offers a 10′ Towable Diesel Screener with Conveyor.

• Capacity: 100 yards her hour

• Weight: 12,200 lbs

• Screen Angle: Adjustable hydraulic tilting deck
  15° lowered - 46° raised

• Overall Dimensions: 7’ 7”′ wide x  27’ 6″ deep, 8’11″ high

• Screen Specifications: 1.5″ x 1.5″ square hole wire woven rock screen with 5′ wide x 10′ wing boards

• Screen Dimensions: 5′ wide x 10′ long with 1′ wing boards

• Removable Grizzly Bars: 3” square tubing, 3/16” wall thickness, 3” spacing

• Finish: Powder Coated

• Engine: Kubota Diesel 24.8hp liquid cooled engine

• Equipped with Glo plugs for easy cold starts

• Towing package: Spring Suspension axle with electric brakes and lights

• Dual wheels with fenders

• Tires: 235/80R16 8 bolt rim

• Hitch Size: 2 5/16″ ball hitch.

• Hydraulic Power Pack: Vibrating deck motor, hydraulic tilting deck, hydraulic rear axle provide better stability, rear axle drops lower to ground for easy setup

• Remote grease points. Safely grease from the ground level

• 10,000 lb axle with electric brakes, spring ride suspension, dual wheels, and oil bath hubs for improved durability and cooler bearing operation.
